ETCHING MACHINE

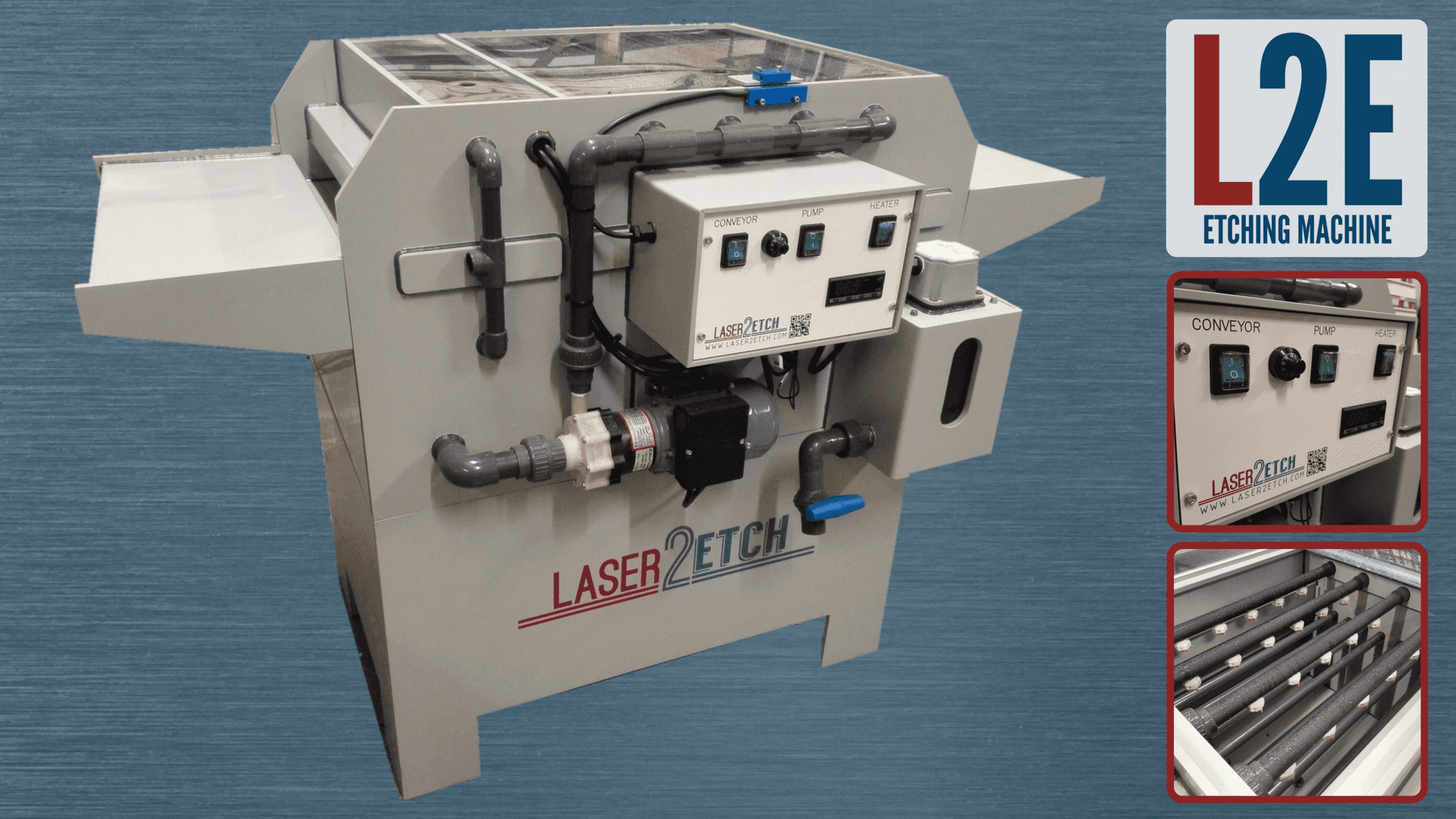

L2E CHEMICAL ETCHING MACHINE

chemical etching machine

CLEAN. SAFE. SIMPLE

Designed and built by Masteretch, the L2E Etching Machine is a high performance compact unit that can easily be installed and operated in Laser engraving and sign shops. research laboratories, universities, fab labs & maker spaces,



About

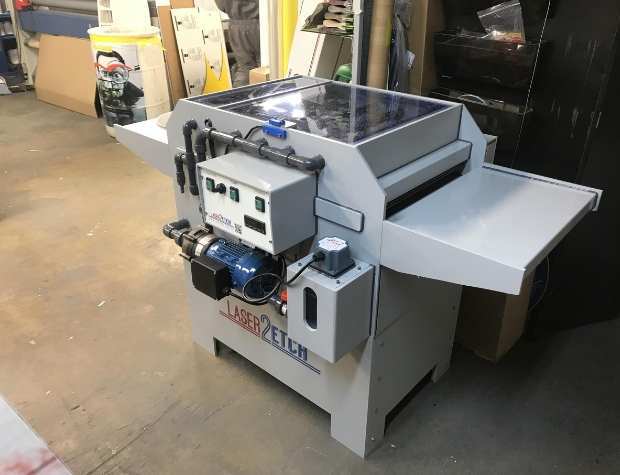

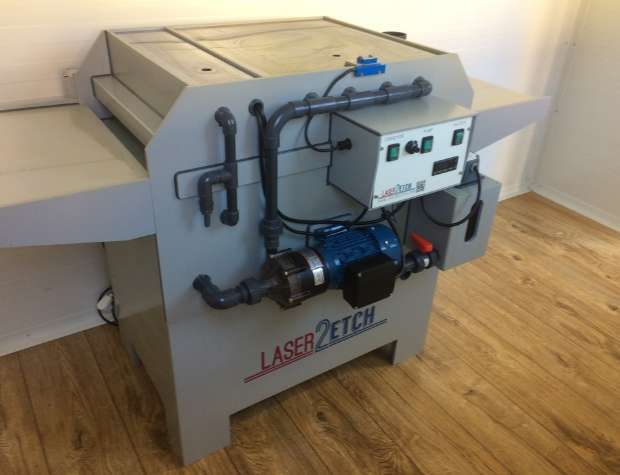

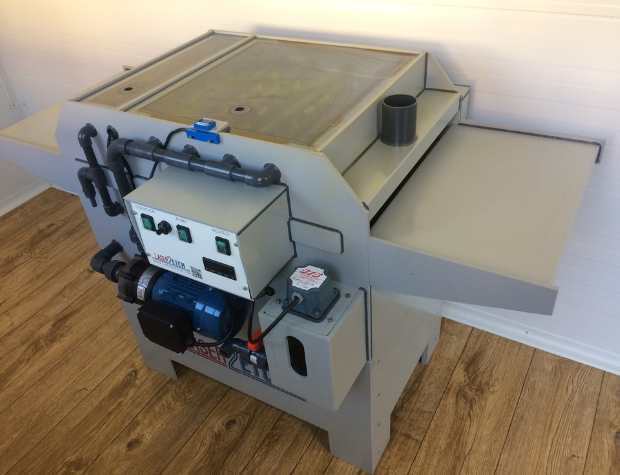

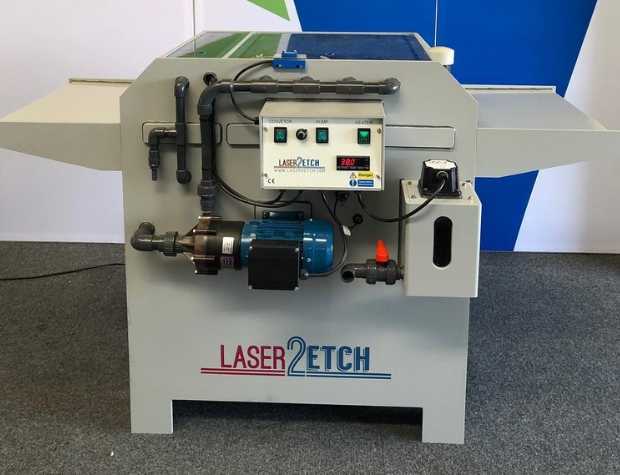

The L2E is a compact and versatile chemical etching machine capable of processing material up to 1/4" thick and 20" wide x unlimited length. It is simple to install and operate and requires minimal maintenance. All parts are fully user serviceable.

It is a conveyorised machine comprised of two sections. The Etch section is a temperature regulated high pressure spray. A series of squeegee rollers eliminates carryover before the final rinse section.

The L2E is hand built at our facility in Corby - UK. We use the same industry best materials and components as used on our parent companies flagship models
Specification

Conveyor width
20” effective (550mm)
Conveyor control
Digital speed control
Conveyor drive
1 to 1 polypropylene drive gears
Pump
High torque magnetic drive unit
Filter lift out filter on input side of pump
Heating
2kw titanium element
Temperature
Digital readout electronic thermostat
Spray banks
4 top w/ quick release fan jets
Carryover
Triple squeegee rollers
Rinse
Top & bottom spray bars

Dimensions
Length 35” + 2 x 10” clip on trays (875mm + 2 x 250mm)
width 31” (787mm)
height 39” (1000mm)

Services
Single phase, ½” water in, 1 ¼” drain

Safety
Low liquid level cut out
Chamber access door interlock
Fume extraction outlet


Specifications


Conveyor width                                20” effective(550mm)
Conveyor control                                 Digital speed control
Conveyor drive                  1 to 1 polypropylene drive gears
Pump                                  High torque magnetic drive unit
Filter                              lift out filter on input side of pump
Heating                                               2kw titanium element
Temperature            Digital readout electronic thermostat
Spray banks                         4 top w/ quick release fan jets
Carryover                                         Triple squeegee rollers
Rinse                                                Top & bottom spray bars

Dimensions
Length 35” + 2 x 10” clip on trays (875mm + 2 x 250mm)
width 31” (787mm)
height 39” (1000mm)

Services
Single phase, ½” water in, 1 ¼” drain

Safety
Low liquid level cut out
Chamber access door interlock
Fume extraction outlet

MADE BY MASTERETCH

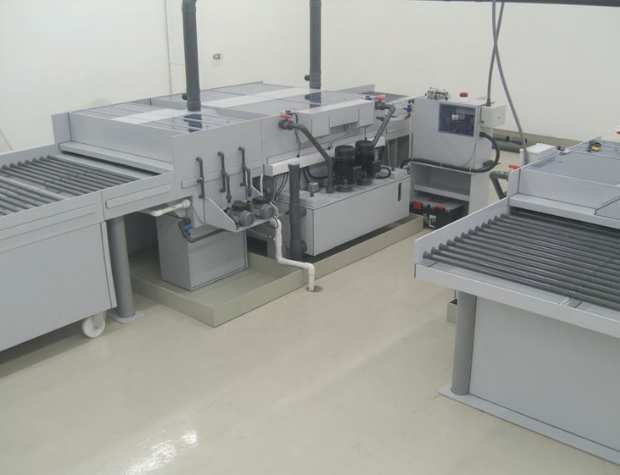

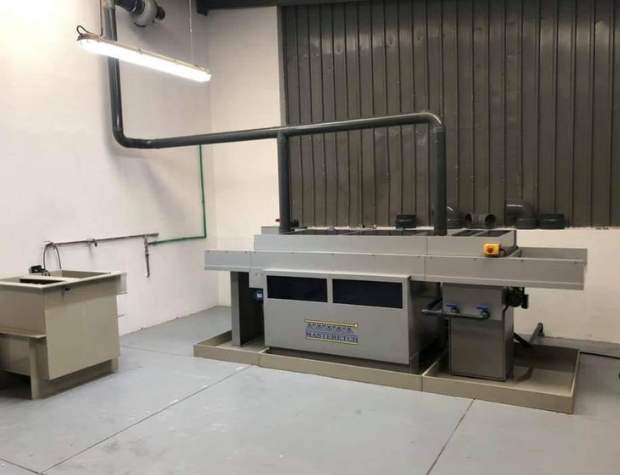

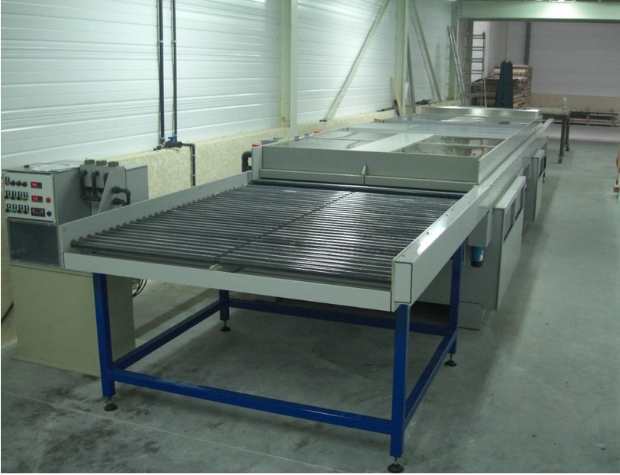

The L2E was developed by Masteretch. We've been manufacturing chemical etching equipment since 1983.  We have installations in over 40 countries and over 35 US sates. Masteretch equipment is trusted by some of the world's leading signs, labels and nameplate companies as well as major electronics and engineering companies.

If you are looking for high volume industrial etching equipment please visit www.masteretching.com

Contact Us

Have any questions on the Laser2etch process? Need a quote? Would you like a copy of our brochure?

Contact us today to find out how you could add more depth to your laser engraving business!


If you would like copy
